There are mainly the following types of headphone pins: ‌

Youdaoplaceholder0 0.78 pin ‌

This is a common type of headphone pin, mainly used for high-end headphones and replaceable cable headphones. Its design is relatively stable and suitable for users who need to frequently replace cables.

Youdaoplaceholder0 MMCX pin ‌

The MMCX plug is currently a popular type of headphone cable replacement plug. Its main advantages include good versatility and easy replacement. It is widely used in various headphone devices, especially some high-end headphones and wireless headphones.

Youdaoplaceholder0 3.5mm TRS pin ‌

This is the most common type of headphone jack, from top to bottom: left channel, right channel and ground. It is compatible with most mobile phones and portable audio devices.

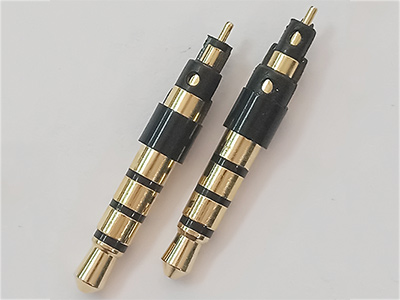

Youdaoplaceholder0 3.5mm TRRS pin ‌

This type of pin adds a line for transmitting the microphone signal on the basis of TRS, supporting both call function and music control function. It is commonly found in headphones with wired control functions.

Youdaoplaceholder0 6.3mm pin ‌

This type of pin is mainly used in professional audio equipment, such as guitar amplifiers, mixing consoles and high-end headphones. It is relatively large in size and suitable for home audio equipment.

Youdaoplaceholder0 4-pin XLR pin ‌

This is a balanced pin. The positive and negative terminals of the left and right channels are completely separated, but the ground is shared. It is mainly used for high-end home headphone amplifiers and large-ear headphones.

Youdaoplaceholder0 2.5mm TRRS pin ‌

This type of pin is mainly used in the balanced output sockets of some digital audio players (Daps), where the positive and negative signals of the left and right channels are transmitted separately and it has a ground wire.

Youdaoplaceholder0 4.4mm pin ‌

This is the standard for balanced headphone plugs published by the Electronic Information Technology Industry Association (JEITA), with the positive and negative poles and ground of the left and right channels being independent of each other. It is currently mainly used in Sony audio products.

These types of pins each have their own characteristics and applicable scenarios. Users can choose the appropriate headphone pins according to their own needs.
